SPECIALTY WINCHES PRODUCTS

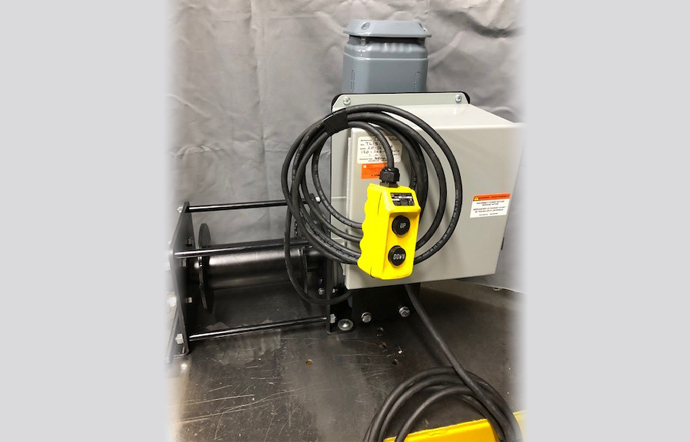

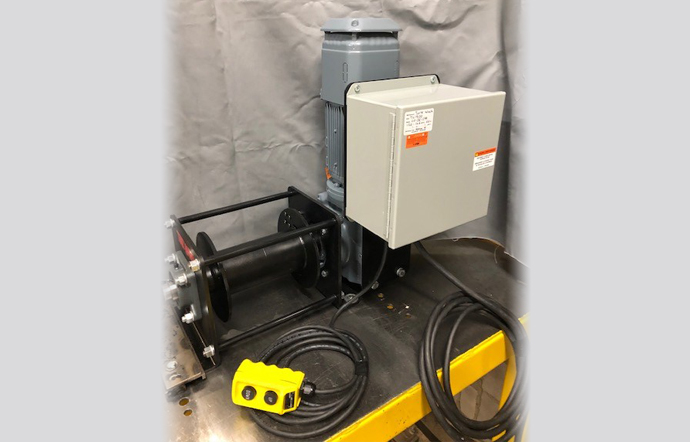

TL 1500 Multi Purpose Winch

PRODUCT FEATURES

• Designed for lifting and hauling
• 1500 lbs capacity
• 1.0 H.P. TEFC motor
• 110/1/60  plug in ready.  (220V also available)
• 12 F.P.M.
• 34’ rope capacity on the first layer (1/4” rope)
• Variable frequency drive
• Electro magnetic Brake
• Pendant included with 15’ cable for ease of use
• Open base for multiple mounting options
• Overall dimensions 16” high x 25” long
