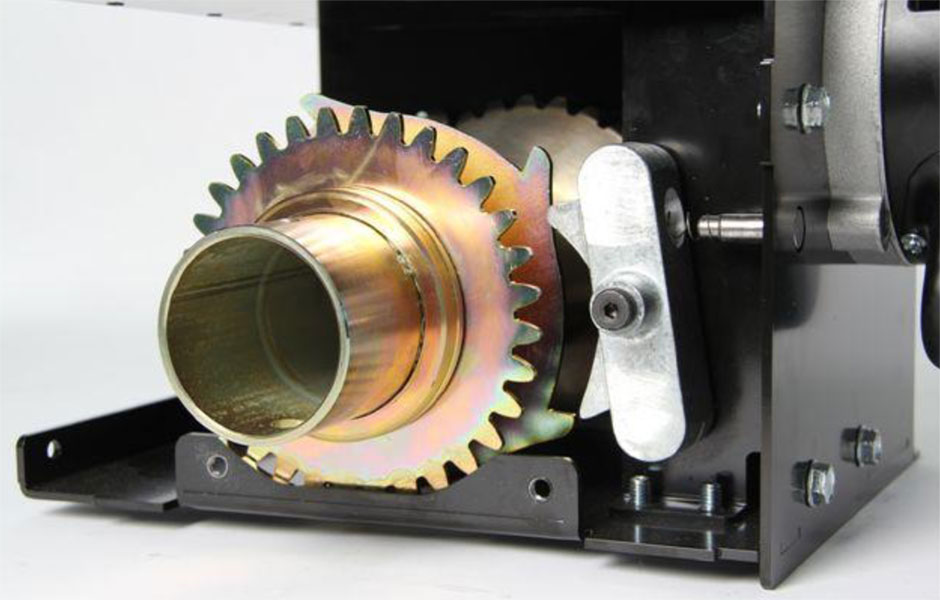

The CW 1800 used for mats, batting and stage winches.
Tork Winch is not responsible for any damages resulted from using a third-party key switch other than ones provided by Tork Winch (for example, Dry Contact Key Switches K-SK13710).
The CW 1800 is rated to deliver 1800 lbs. of torque at 10 rpm. This is equivalent to lifting a 600 lbs. curtain at 13 fpm using a 2 3/8” diameter drive shaft. The available travel is 80 revolutions of the output drum – the equivalent to lifting a distance of 50 feet using a 2 3/8” diameter drive shaft. Built in North America, it is compact and weighs only 68.5 lbs. allowing for unprecedented ease of installation. All main frame components are e-coated and all exposed sub-components are plated for maximum corrosion protection.Back
